Χαρακτηριστικά:

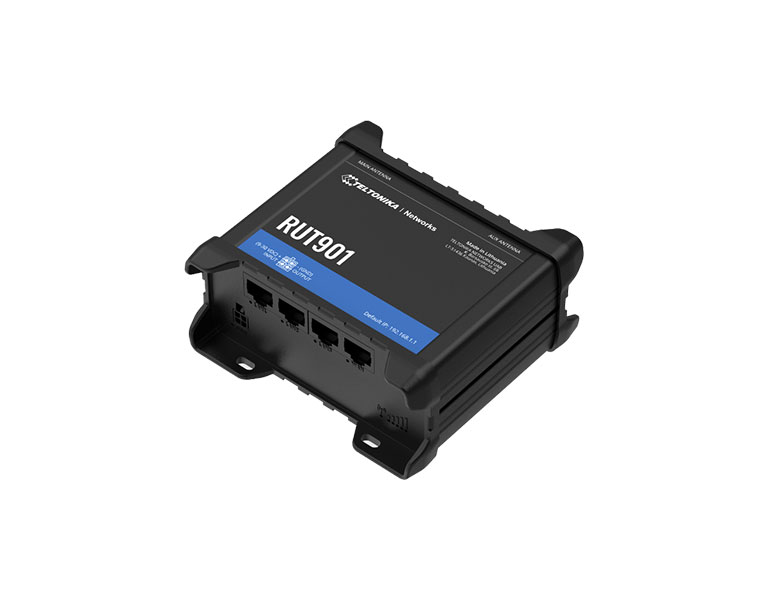

 Ο Νέος κυψελοειδής δρομολογητής RUT901 προσφέρει στην αγορά τις κορυφαίες δυνατότητες των προκατόχων του, των RUT950 και RUT951.

Ο δρομολογητής διαθέτει κυψελοειδή συνδεσιμότητα διπλής SIM 4G και Wi-Fi, καθώς και διασυνδέσεις 4x Ethernet, για να καλύψει τις ανάγκες πολλών ποικίλες λύσεις IoT.

MOBILE

• Mobile module
  4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
• SIM switch
  2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• Status
  Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
• SMS
  SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD
  Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list
  Operator black/white list
• Multiple PDN
  Possibility to use different PDNs for multiple network access and services
• Band management
  Band lock, Used band status display
• APN
  Auto APN
• Bridge
  Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough
  Router assigns its mobile WAN IP address to another device on LAN

WIRELESS

• Wireless mode
  IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• WiFi security
  WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP, WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE; AES-CCMP, TKIP, Auto Cipher modes, client separation
• SSID/ESSID
  SSID stealth mode and access control based on MAC address
• WiFi users
  Up to 100 simultaneous connections
• Wireless Hotspot
  Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

ETHERNET

• WAN
  1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
• LAN
  3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORK

• Routing
  Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
• Network protocols
  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support
  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring
  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall
  Port forward, traffic rules, custom rules
• DHCP
  Static and dynamic IP allocation, DHCP Relay, Relayd
• QoS / Smart Queue Management (SQM)
  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS
  Supported >25 service providers, others can be configured manually
• Network backup
  WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing
  Balance Internet traffic over multiple WAN connections
• Hotspot
  Internal/external Radius server, captive portal, built in customizable landing page
• SSHFS
  Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY

• Authentication
  Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
• Firewall
  Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention
  DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN
  Port and tag based VLAN separation
• Mobile quota control
  Custom data limits for both SIM cards
• WEB filter
  Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control
  Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN
  Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption
  DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
• BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• IPsec
  IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• GRE
  GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP
  Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel
  Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN
  Method of building scalable IPsec VPNs
• SSTP
  SSTP client instance support
• ZeroTier
  ZeroTier VPN client support
• WireGuard
  WireGuard VPN client and server support
• Tinc
  Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

MODBUS TCP SLAVE

• ID range
  Respond to one ID in range [1;255] or any
• Allow Remote Access
  Allow access through WAN
• Custom registers
  MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
• MODBUS TCP MASTER
• Supported functions
  01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats
  8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS DATA TO SERVER

• Protocol
  HTTP(S), MQTT, Azure MQTT
• MQTT GATEWAY
• MQTT Gateway
  Allows sending commands and receiving data from MODBUS Master through MQTT broker
• DNP3
• Supported modes
  TCP Master, DNP3 Outstation

MONITORING & MANAGEMENT

• WEB UI
  HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA
  Firmware update from server, automatic notification
• SSH
  SSH (v1, v2)
• SMS
  SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Call
  Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
• TR-069
  OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT
  MQTT Broker, MQTT publisher
• SNMP
  SNMP (v1, v2, v3), SNMP Trap
• JSON-RPC
  Management API over HTTP/HTTPS
• MODBUS
  MODBUS TCP status/control
• RMS
  Teltonika Remote Management System (RMS)

IOT PLATFORMS

• Cloud of Things
  Allows monitoring of: Device data, Mobile data, Network info, Availability
• ThingWorx
  Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity
  Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
• Azure IoT Hub
  Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server

SYSTEM CHARACTERISTICS

• CPU
  Mediatek MIPS 24Kc 580 MHz
• RAM
  128 MB, DDR2
• FLASH storage
  16 MB, SPI Flash

FIRMWARE / CONFIGURATION

• WEB UI
  Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA
  Update FW
• RMS
  Update FW/configuration for multiple devices at once
• Keep settings
  Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

• Operating system
  RutOS (OpenWrt based Linux OS)
• Supported languages
  Busybox shell, Lua, C, C++
• Development tools
  SDK package with build environment provided

INPUT / OUTPUT

• Input
  1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output
• 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events
  Email, RMS, SMS
• I/O juggler
  Allows to set certain I/O conditions to initiate event

POWER

• Connector
  4-pin industrial DC power socket
• Input voltage range
  9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
• PoE (passive)
  Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC
• Power consumption
  < 2 W idle, < 7 W Max

PHYSICAL INTERFACES

• Ethernet
  4 x RJ45 ports, 10/100 Mbps
• I/O’s
• 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs
  1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
• SIM
  2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
• Power
  1 x 4-pin power connector
• Antennas
  2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
• Reset
  Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION

• Casing material
  Aluminium housing, plastic panels
• Dimensions (W x H x D)
  110 x 50 x 100 mm
• Weight
  297 g
• Mounting options
  DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

• Operating temperature
  -40 °C to 75 °C
• Operating humidity
  10% to 90% non-condensing
• Ingress Protection Rating
  IP30

REGULATORY & TYPE APPROVALS

• Regulatory
  CE/RED, UKCA, EAC, UCRF
• EMI IMMUNITY
• Standards
  EN 301 489-1 V2.2.3, Draft EN 301 489-17 V3.2.5, EN 301 489-52 V1.2.1, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020
• ESD
  EN 61000-4-2:2009
• RS
  EN 61000-4-2:2009
• EFT
  EN 61000-4-4:2012
• Surge protection
  EN 61000-4-5:2014+A1:2017
• CS
  EN 61000-4-6:2014
• DIP
  EN IEC 61000-4-11:2020

PERFORMANCE SPECIFICATIONS

• Standards
  EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 301 908-1 V15.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1

SAFETY

• Standards
  EN IEC 62311:2020, EN 50665:2017

PACKAGE CONTAINS

• Router RUT901
• 9 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 2 x Wi-Fi antennas (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box
